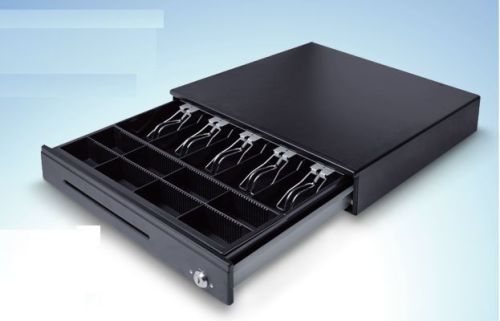

ECH-100 Cash Drawer

Cash Drawer ECH-100

•Adjustable bill coin compartment

•Durability for 1 million operation

•Three -positions lock for maximum cash security

•Anti-scratch surface

•Screwless design metal casing

•Emergency release

•None spring mechanism

Specifications

Dimensions (inch) 15.7" (W) x 15.8" (L) x 3.3" (H) (without feet)

Dimensions (mm) 400 (W) X 405 (D) X 85 (H) (without feet)

Color Dark Grey Black White Customization

Weight 6.8 Kg

Drawer Type Cash drawer with heavy-duty metal rollers

Casing Gauge steel construction with customized front

Money Case 4-5 Bills 5, 7-8 Coins ; Adjustable dividers; Removable coin tray

Media Slot Front access slot for check Credit card Bills

Applicable Currency Global Currency: US Canada Euro UK Asia

Drawer Finish Scratch resistant texture Powder coat

Lock 3 Position key lock

Emergency Release Emergency release lever on the chassis of drawer

I/O Interface 12V 24V for RJ11 Receipt printer interface; 9-Pin RS232 interface (option) ; USB Interface (option)

8-Pin RJ45 interface (option); 10-Pin RJ48 interface (option); Bluetooth Interface (option);

Micro Switch Opened by sign to the solenoid
